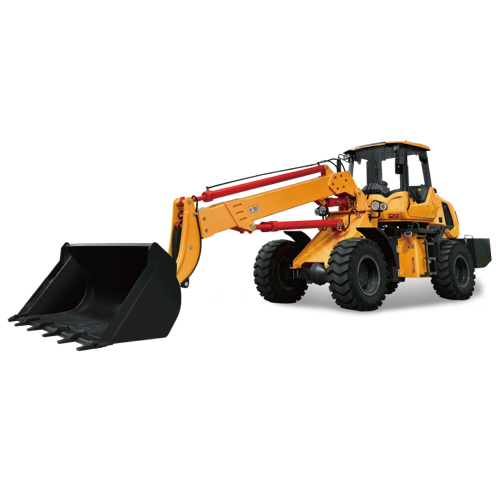

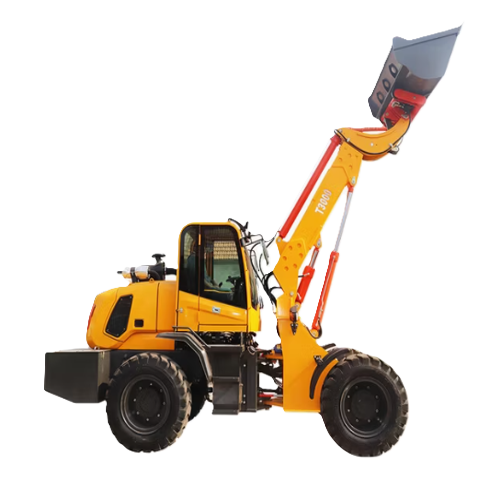

T3000 Telescopic Wheel Loader | U & Me Traders Pakistan
T3000 Telescopic wheel loader can telescope like a telescope, thus extending or shortening the working distance.
|
Engine |
Yunnei4105Turbo |
|
Model |
7meter/9meter |
|
Rated Loading(kg) |
3000 |
|
Rated Power(kw) |
85 |
PARAMETERS
|
Engine |
Yunnei4105Turbo |
|
Model |
7meter |
|
Diemension(mm) |
7350*2100*2900 |
|
Minimum ground clearance(mm) |
320 |
|
Total weight(kg) |
6700/7000 |
|
Speed(rpm) |
2400 |
|
Maximum climbing capacity(°) |
38 |
|
Minimum turning radius(mm) |
5750 |
|
Lifting height(mm) |
7000/9000 |
|
Maximum load(kg) |
2500 |
|
Dumping distance at max lifting height(mm) |
1550 |
|
Rated loading at max dumping distance(mm) |
1300kgs |
|
Wheel distance(mm) |
1700 |
|
Rated power(kw) |
85 |
|
Gearbox |
Front 2 and rear 2 |
|
Tire specifications |
16/70-20 |
|
Service brakes |
Air top caliper disc brake |
|
Drive type |
Four-wheel drive |
ADVANTAGES
T2500 Telescopic wheel loader is powered by the powerful Yudong 4105C engine (76KW).Uses a 2+2 gearbox,it's a highly productive piece of equipment.
Telescopic wheel loaders offer more power and torque, as well as greater traction.
The all-wheel steering design provides a constant centre of gravity in the centre of the machine, thus making it extremely stable.
Popular in Europe, luyu telescopic wheel loaders are becoming increasingly popular in North America due to their versatility and greater reach and dumping capacity.
