LY928C Mini Loader | Compact 2-Ton Wheel Loader – U & Me Traders
LY928C Mini Wheel Loader – Compact Strength for Tight Spaces
The LY928C Mini Wheel Loader is a compact yet powerful machine designed for efficient performance in tight spaces and light-to-medium duty environments. Perfect for small construction sites, farms, landscaping, and municipal jobs, the LY928C combines agility, reliability, and versatility in a compact body—ideal for operators needing a strong 2-ton mini loader.
Technical Specifications – LY928C Loader
| Specification | Details |
|---|---|
| Model | LY928C Mini Wheel Loader |
| Rated Load Capacity | 2,000–2,200 kg (2 to 2.2 tons) – Ideal for medium-duty operations |
| Operating Weight | Approx. 4,800 kg – Ensures stability and smooth operation |
| Engine Options | Yunnei 490 / Xinchai 490 / optional Cummins |
| Rated Power Output | 55–65 kW (75–87 hp) – Reliable and fuel-efficient diesel engine |
| Bucket Capacity | 0.8 – 1.2 m³ – Suitable for grain, soil, sand, compost, or debris |
| Transmission Type | Hydraulic torque converter |
| Gears | 4 Forward / 4 Reverse |
| Dumping Height | 3,200 mm – Good for truck loading and bin operations |
| Max Lifting Height | 3,500 mm – Suitable for stacking and elevated tipping tasks |
| Steering System | Full hydraulic articulated steering |
| Brake System | Air-over-oil disc brakes |
| Tire Size | 20.5/70-16 or 23.5/25 depending on model variant |
| Cab Options | Enclosed ROPS/FOPS cab with suspension seat, wide view, optional A/C |
| Attachment Support | Snow blade, pallet fork, auger, log grapple, bale grab |
Working Mechanism – How the LY928C Loader Operates

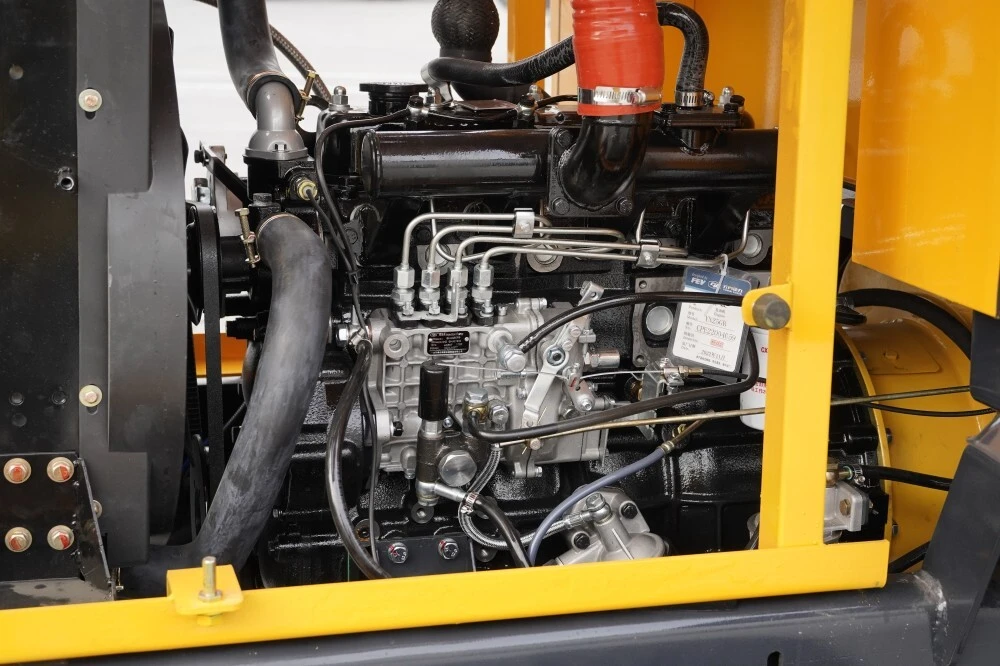

The LY928C mini loader is powered by a 4-cylinder diesel engine connected to a hydraulic torque converter transmission. This setup ensures smooth gear shifting, responsive movement, and dependable lifting performance even under varying loads.
Its articulated steering design allows the loader to easily maneuver in narrow passages, farmyards, construction areas, and warehouses. The bucket and attachment controls are operated via an ergonomic joystick system from inside a comfortable, enclosed cabin that provides all-around visibility.
Whether it's feeding livestock, moving aggregate, clearing snow, or lifting pallets, the LY928C performs all tasks with precision and speed, thanks to its responsive hydraulic system and wide lifting range.
Advantages of the LY928C Mini Wheel Loader
🔹 Compact Size, Big Performance
The LY928C combines a compact frame with 2-ton lifting power, making it ideal for applications where maneuverability and strength are both critical.
🔹 High Dump and Lift Capabilities
With a 3.2-meter dump height and 3.5-meter lift height, the loader can handle medium-height trucks and stacked storage with ease.
🔹 Fuel-Efficient Engine Choices
The loader is equipped with Yunnei or Xinchai diesel engines, offering high torque, low emissions, and exceptional fuel economy—perfect for daily use.
🔹 Quick-Attach Ready for Multi-Tasking
Compatible with a wide range of attachments including buckets, forks, grapples, and snow blades, this loader transforms quickly from one job to another.
🔹 Ergonomic Cabin with Operator Comfort
The ROPS/FOPS cabin ensures operator safety while the suspension seat, intuitive controls, and optional air conditioning enhance comfort for long working hours.
🔹 Low Maintenance and Rugged Build

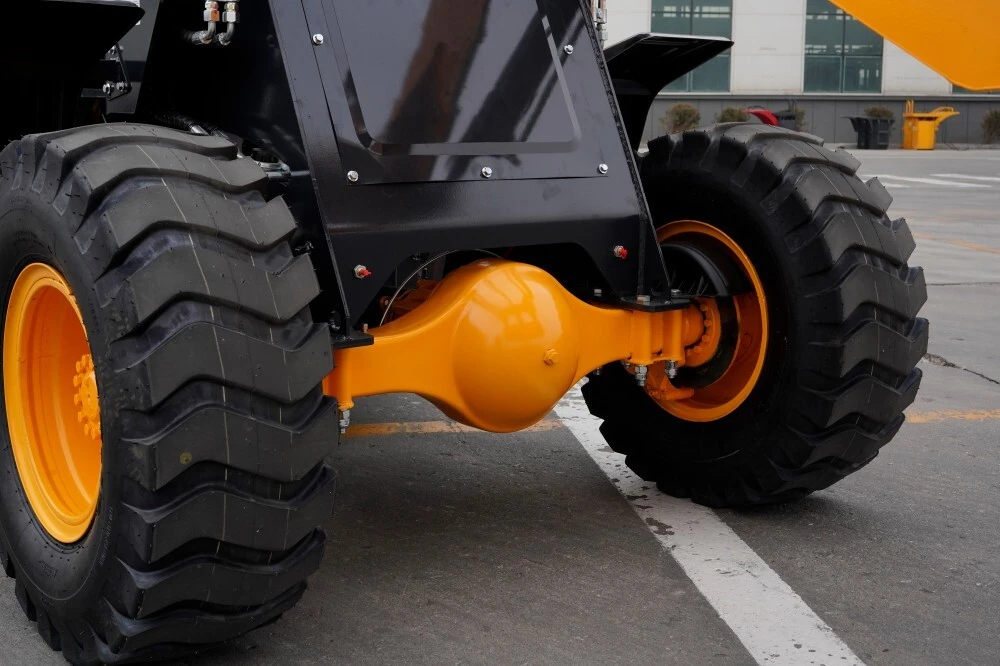

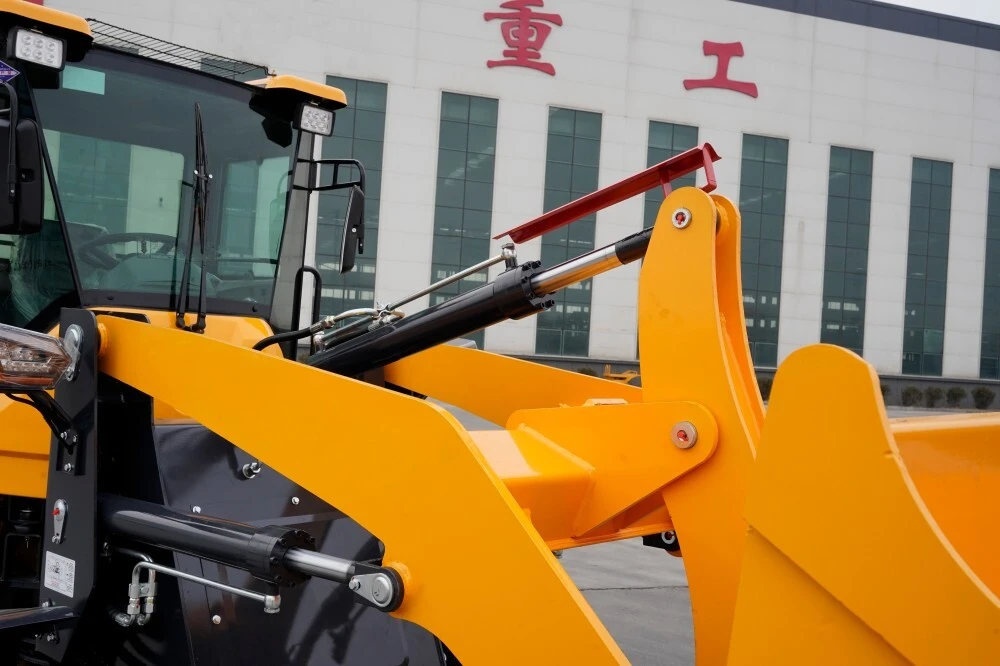

The LY928C is built with reinforced arms, heavy-duty axles, and easy-access service panels, minimizing downtime and maximizing lifespan.
