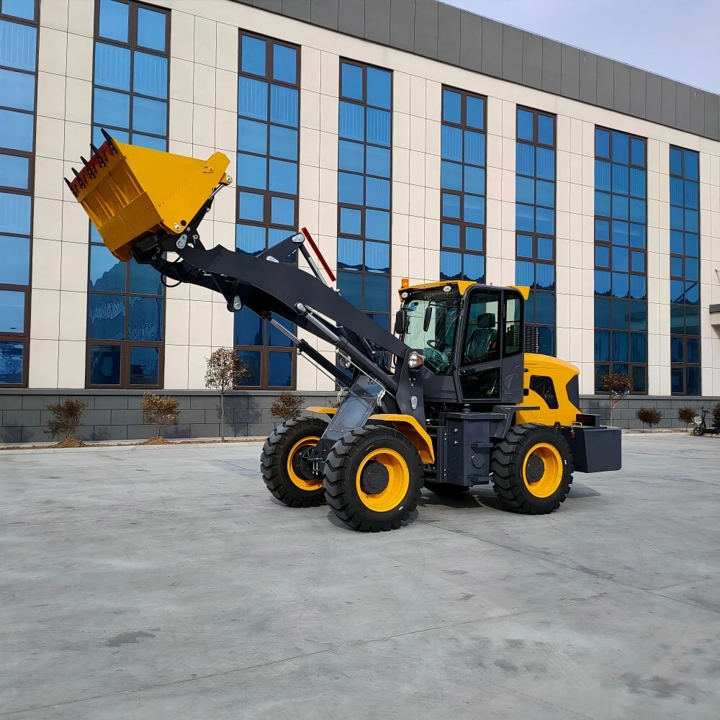

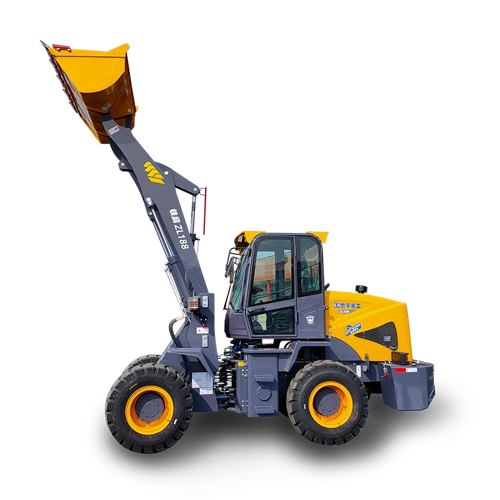

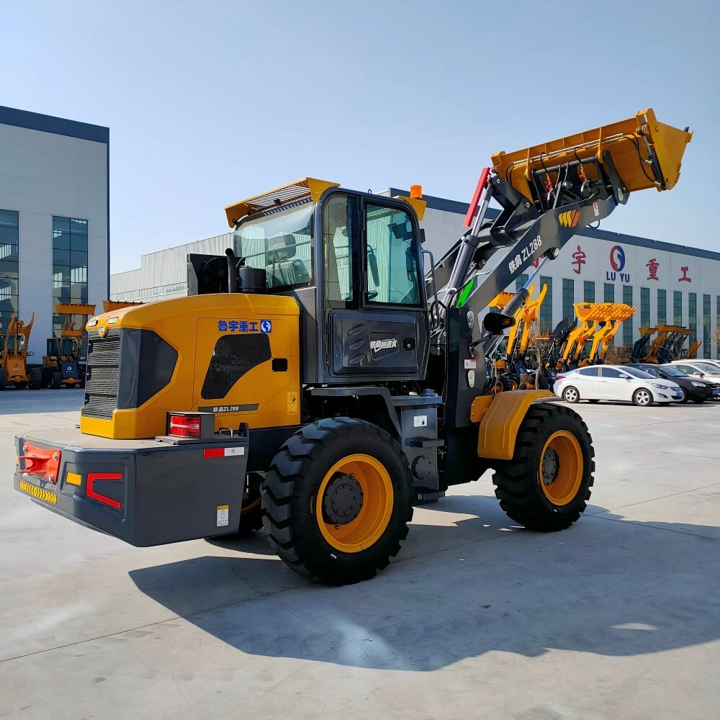

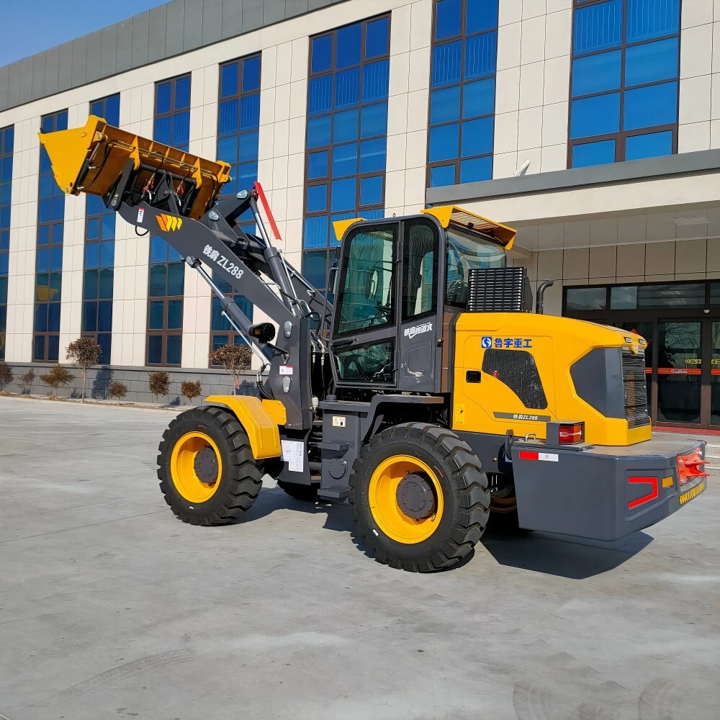

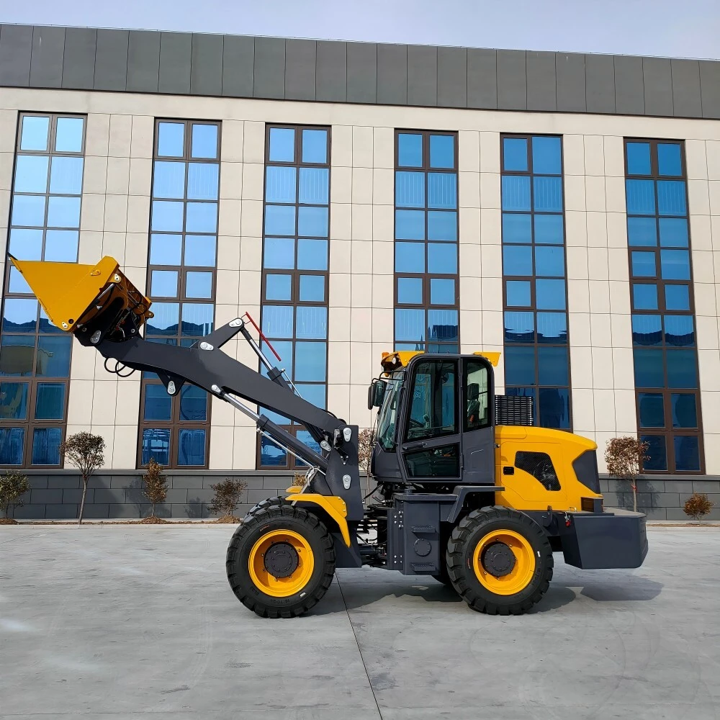

LT288 Frontend Wheel Loader | U & Me Traders Pakistan
The LT288 Frontend Wheel Loader is a versatile and durable compact loader designed for construction, road work, farming, and material transport. With a solid structure, powerful diesel engine, and ergonomic design, this machine offers excellent performance for small to mid-scale material handling tasks. It's ideal for users who need a compact front loader with high breakout force and low fuel consumption.
Technical Specifications – LT288 Loader
| Feature | Specification |
|---|---|
| Model | LT288 Frontend Wheel Loader |
| Rated Load Capacity | 1,600 kg – Ideal for light- to medium-duty lifting jobs |
| Operating Weight | Approx. 4,500 kg – Ensures stability during material transport |
| Engine Model | Yunnei YN4102 or Xinchai 490 – 4-cylinder diesel |
| Rated Power | 42 kW (56 hp) – Fuel-efficient and reliable |
| Bucket Capacity | 0.8 – 1.0 m³ – Perfect for soil, gravel, sand, and feed |
| Transmission | Hydraulic torque converter, mechanical transmission |
| Max Dumping Height | 3,200 mm – Great for truck loading and stacking |
| Max Lifting Height | 3,600 mm – Efficient for moderate height applications |
| Gear Shifts | 2 Forward / 2 Reverse |
| Steering System | Full hydraulic, articulated steering |
| Brake System | Air-over-oil disc brakes |
| Tire Size | 20.5/70-16 |
| Cabin Features | Enclosed cab, optional A/C, suspension seat |
| Attachment Options | Quick-change system supports snow blade, pallet forks, log grapples, augers |
Working Mechanism – How LT288 Operates
The LT288 loader operates through a combination of hydraulic lifting and articulated steering, allowing for smooth, precise handling of heavy materials even in confined spaces. The hydraulic torque converter optimizes power delivery from the engine to the drivetrain, making the machine responsive and efficient.
Its articulated chassis enables sharp turning, which is ideal for navigating through construction sites, agricultural fields, and warehouse areas. The bucket or attachment is operated via joystick controls, and the cab provides a clear field of vision, which is essential for accurate front loader operations.
Because of its compact size and power, the LT288 is especially effective as a mini frontend loader for farms and small construction projects, providing solid output without sacrificing maneuverability.
Advantages of the LT288 Frontend Wheel Loader
🔹 Compact and Powerful
The LT288 offers a great balance of size and strength. Its compact frame allows it to operate in tight environments, while the 56-horsepower engine delivers enough muscle to lift up to 1.6 tons of material.
🔹 High Dump and Lift Height
With a dumping height of over 3.2 meters, the LT288 is perfect for loading dump trucks, bins, or hoppers. The lifting system is calibrated for stability and control even at maximum height.
🔹 Multiple Attachments, One Machine
Thanks to its quick-attach system, the LT288 can be transformed from a bucket loader to a forklift, log handler, or even snow plow in seconds. This makes it a multi-functional wheel loader suitable for seasonal and year-round jobs.
🔹 Operator Comfort and Safety
The cab is enclosed and designed with ROPS structure, suspension seat, and optional air conditioning. Whether you're working in a dusty quarry or a humid agricultural field, the LT288 provides a safe and comfortable environment.
🔹 Low Fuel Consumption and Maintenance
The Yunnei and Xinchai engines are known for fuel efficiency and low-cost maintenance, making the LT288 one of the most economical loaders in its class.
🔹 Easy Maintenance Access
Key service points are easily accessible from the ground level, which reduces downtime and makes regular maintenance quick and simple.
