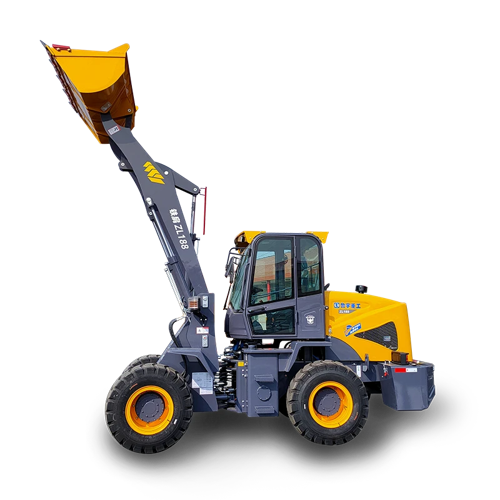

LT188 Frontend Wheel Loader | U & Me Traders Pakistan
The LT188 Frontend Wheel Loader is a rugged, compact, and fuel-efficient machine designed for light to medium-duty applications in agriculture, landscaping, municipal services, and small construction projects. This 1.8-ton compact loader offers the ideal balance between lifting power and size, allowing operators to perform efficiently even in tight or semi-urban environments.
Technical Specifications – LT188 Loader
| Feature | Specification |
|---|---|
| Model | LT188 Frontend Wheel Loader |
| Rated Load Capacity | 1,800 kg – Efficient for small to mid-scale lifting operations |
| Operating Weight | ~4,200 kg – Stable and well-balanced for routine field work |
| Engine Options | Yunnei YN4102 / Xinchai 490 – 4-cylinder diesel engines |
| Rated Power Output | 42 kW (56 hp) – Reliable and fuel-efficient |
| Bucket Capacity | 0.7 – 0.9 m³ – Suitable for soil, gravel, grain, compost, and feed |
| Transmission System | Hydraulic torque converter with mechanical drive |
| Gear Shifts | 2 Forward / 2 Reverse |
| Dumping Height | 3,100 mm – Perfect for small truck and container loading |
| Max Lifting Height | 3,400 mm – Supports moderate stacking tasks |
| Steering Type | Full hydraulic articulated steering |
| Brake System | Air-over-oil disc brakes |
| Tire Size | 20.5/70-16 |
| Cab Design | Enclosed cabin, ROPS/FOPS compliant, ergonomic seat, optional A/C |
| Attachment Compatibility | Quick-change system: forks, log grapples, snow blade, auger |
Working Mechanism – How the LT188 Loader Operates
The LT188 loader is built around a hydraulic lifting system paired with a mechanical drive transmission and a hydraulic torque converter, which work together to transfer engine power efficiently to the wheels and lift arms.
Its articulated frame design ensures excellent maneuverability, allowing smooth navigation in confined job sites, storage yards, livestock farms, and greenhouses. Operators use intuitive joysticks within the ROPS/FOPS-protected cab to lift, tilt, and operate attachments with precision.
This 1.8-ton frontend loader is well-suited for daily material transport, feed distribution, trench filling, and light aggregate handling, making it a go-to machine for farmers, landscapers, and small contractors.
Advantages of the LT188 Frontend Wheel Loader
🔹 Optimized Size and Power
The LT188’s compact footprint and 56 hp engine deliver the power you need without the size and fuel costs of larger machines. Perfect for jobs requiring small loader maneuverability with full-sized capability.
🔹 Multiple Attachments for Year-Round Utility
Whether it’s a pallet fork for warehousing, a log grapple for forestry, or a snow bucket for winter tasks, the LT188 transforms quickly through its quick-change attachment system, enhancing ROI across seasons.
🔹 Comfort and Operator Safety

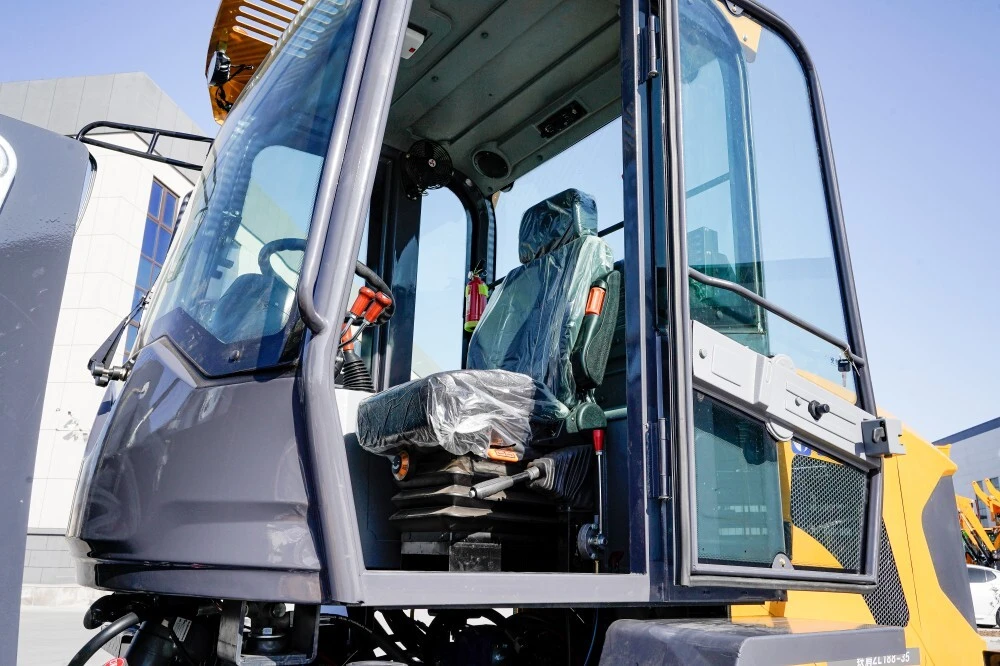

The LT188 features a well-insulated cabin with wide visibility, ergonomic controls, and the option for air conditioning—ensuring comfortable operation during long work hours in hot, cold, or dusty environments.
🔹 Fuel Efficiency and Low Emissions
Engineered for low fuel consumption, the Yunnei and Xinchai diesel engines used in the LT188 are optimized for torque and longevity while keeping operational costs low.
🔹 Easy Service and Maintenance
The loader’s design includes easy-access service points, robust frame structure, and long-life components, reducing downtime and ensuring continuous productivity.
