LT168 Frontend Wheel Loader | U & Me Traders Pakistan

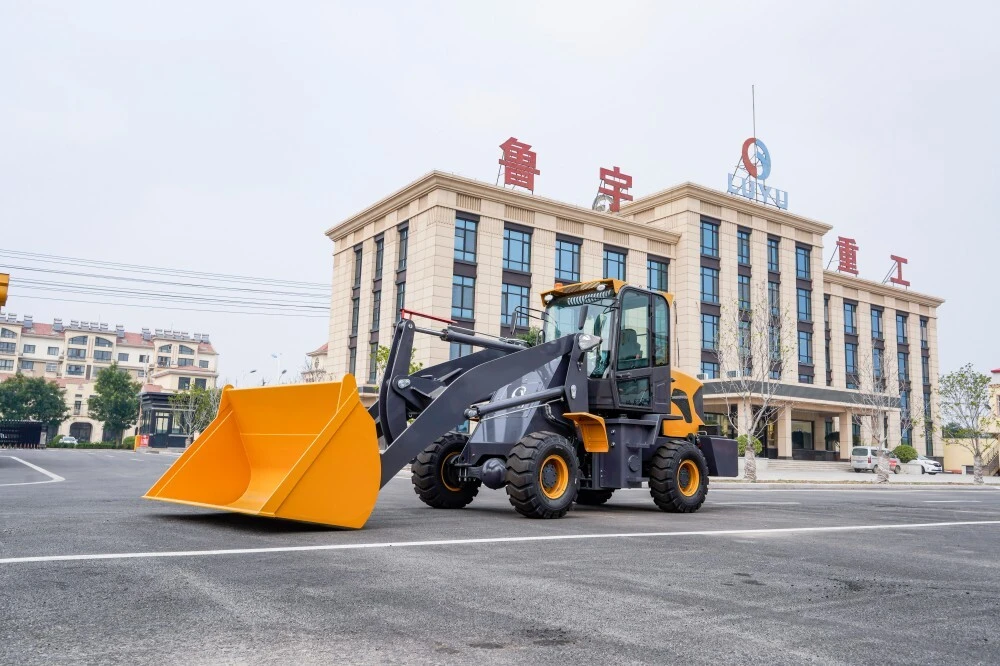

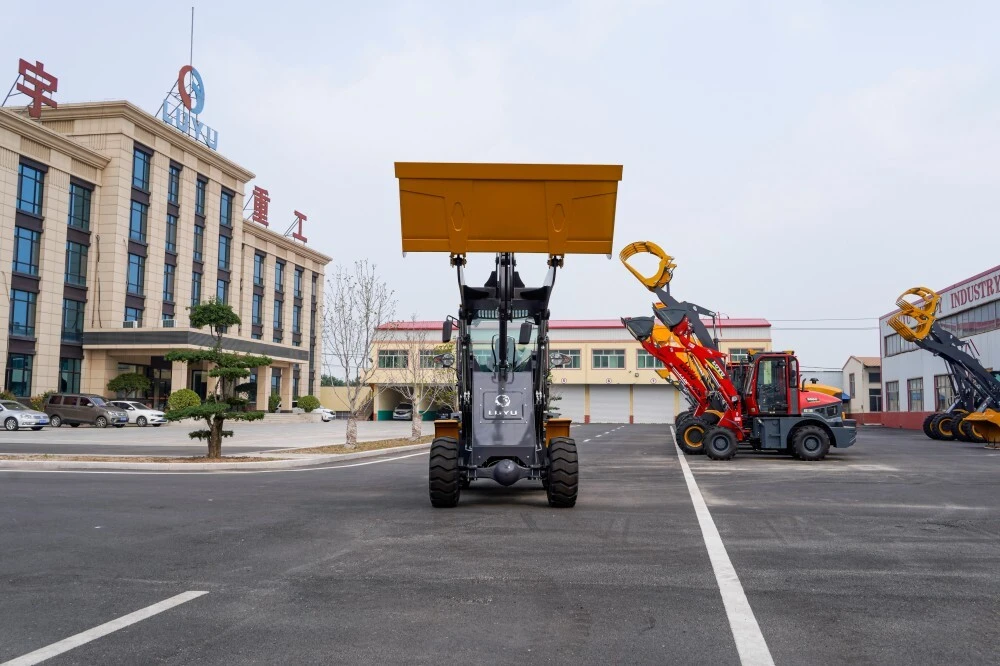

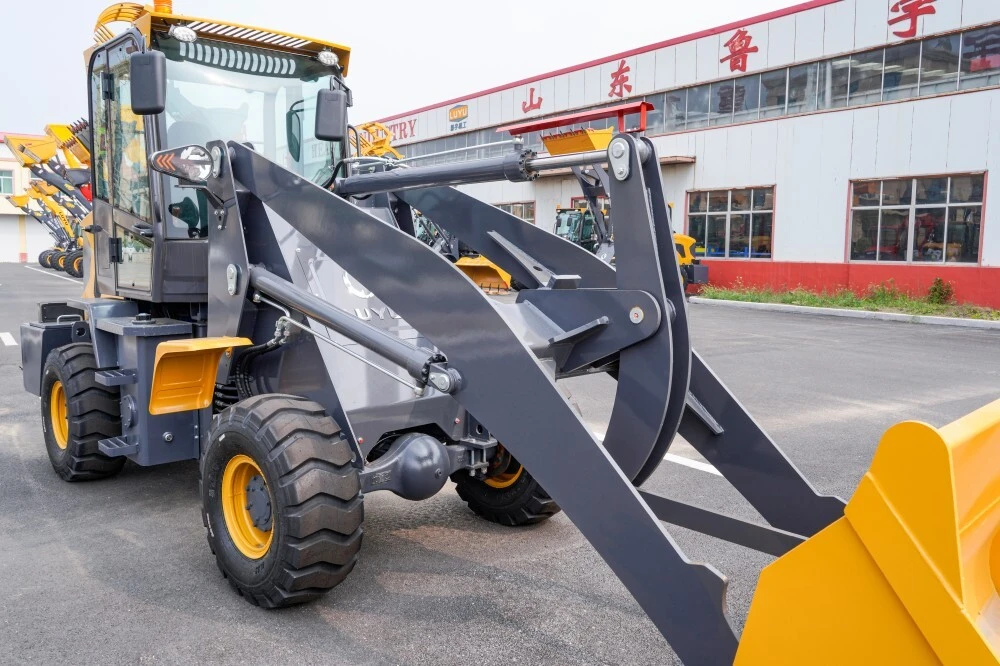

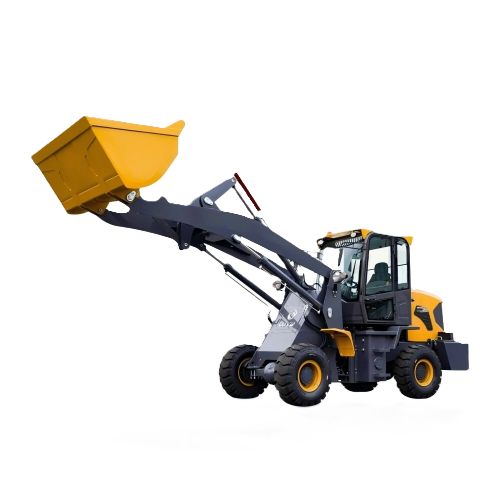

The LT168 Frontend Wheel Loader is a compact, reliable, and high-performing machine designed for light to medium-duty operations across construction sites, farms, landscaping projects, and municipal services. With its tight turning radius and fuel-efficient engine, the LT168 is ideal for operations requiring a small wheel loader with great maneuverability and lifting power.
Technical Specifications – LT168 Loader
| Specification | Details |
|---|---|
| Model | LT168 Frontend Wheel Loader |
| Rated Load Capacity | 1,200 kg – Suitable for light-duty lifting jobs |
| Operating Weight | ~3,500 kg – Ensures balance and traction |
| Engine Model | Yunnei 490 / Xinchai C490 – Diesel, 4-cylinder |
| Rated Power Output | 37 kW (50 hp) – Economical and low emission |
| Bucket Capacity | 0.5 – 0.7 m³ – Perfect for sand, gravel, feed, and light construction material |
| Transmission System | Hydraulic torque converter |
| Gear System | 2 Forward / 2 Reverse |
| Dumping Height | 2,800 mm – Ideal for small truck and bin loading |
| Lifting Height | 3,000 mm |
| Steering Type | Articulated hydraulic steering |
| Brake System | Air-over-oil disc brakes |
| Tire Size | 20.5/70-16 |
| Cab Design | Enclosed cabin with ROPS/FOPS, suspension seat, optional A/C |
| Attachments Supported | Bucket, pallet fork, log grapple, snow blade |
Working Mechanism – How LT168 Operates
The LT168 loader uses a hydraulic lifting mechanism controlled through ergonomic levers within the cabin. Its compact chassis and articulated steering make it easy to maneuver in narrow lanes, feedlots, and small construction zones. The hydraulic torque converter transmission delivers seamless power from the engine to the wheels and bucket, providing smooth lifting and dumping motion.
This small front loader is especially suited for tight, congested workspaces where full-size loaders are impractical. It can load light materials into trucks, move feed and fertilizer on farms, and perform snow clearing and utility maintenance in urban settings.
Its diesel engine options from Yunnei and Xinchai provide stable performance and good fuel economy, making it an excellent choice for operators looking for a reliable yet economical compact wheel loader.
Advantages of the LT168 Frontend Wheel Loader
🔹 Compact Design for Narrow Spaces
The LT168’s compact dimensions and articulated steering system make it an excellent choice for operations in small yards, greenhouses, tight warehouses, and municipal alleys.
🔹 Fuel-Efficient Performance
With a 50-hp diesel engine, the loader consumes less fuel without sacrificing output—ideal for long shifts on farms or during landscaping tasks. This makes it a top pick for those seeking a low-cost frontend loader with dependable output.
🔹 Multi-Functionality with Attachments
The quick-change attachment system supports multiple tools, including forks, grapples, and snow blades. This transforms the LT168 into a multi-purpose machine that meets seasonal and year-round needs.
🔹 Safe and Comfortable Operation
Operators benefit from a ROPS/FOPS-certified cabin, suspension seat, and optional A/C, offering safety and comfort during extended operations in dusty or extreme conditions.
🔹 Low Maintenance and Long Lifespan
The loader is designed with accessible service points and reinforced components to ensure low downtime. Its reliable transmission and drivetrain are engineered for consistent daily use in challenging environments.
