LK952 Grain Bucket Loader | U & Me Traders Pakistan

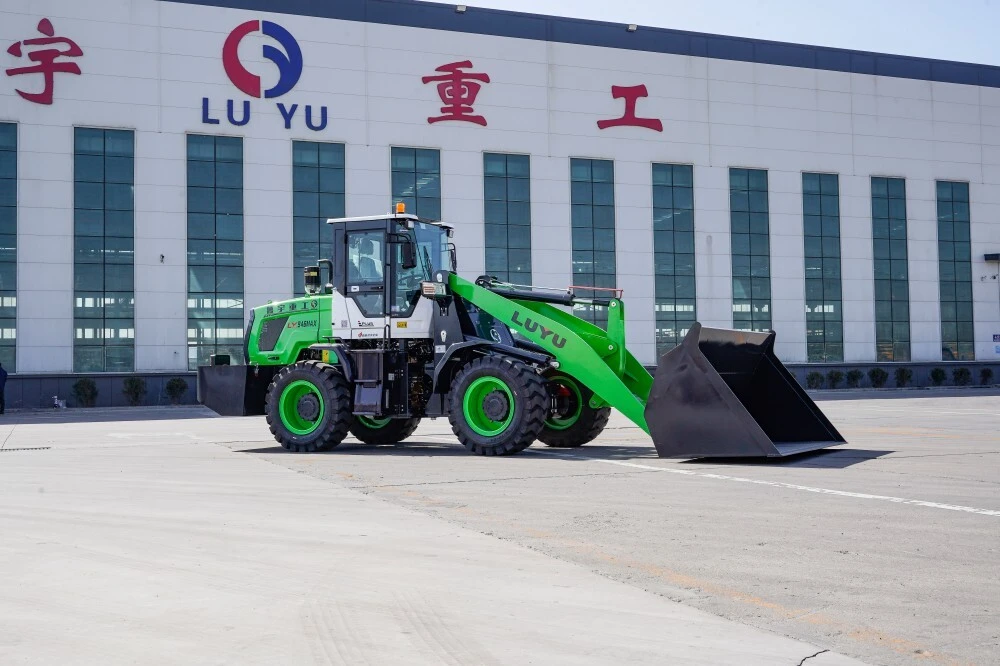

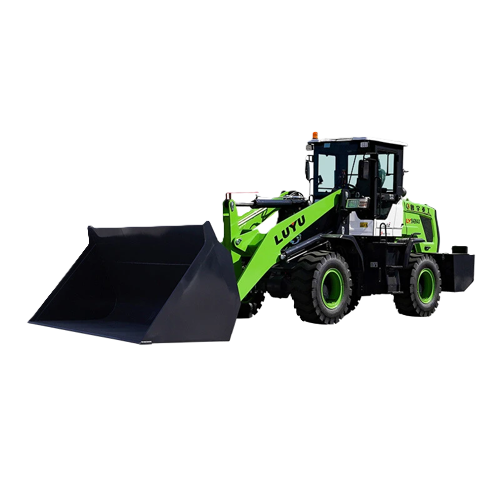

The LK952 Grain Bucket Loader is purpose-built for agricultural operations, grain terminals, warehouses, and bulk material yards where high-volume, efficient loading is essential. Featuring an oversized grain bucket, strong lifting arms, and a fuel-efficient engine, the LK952 offers unmatched performance for large-scale grain handling and loose material transport.
Technical Specifications – LK952 Loader
| Specification | Details |
|---|---|
| Model | LK952 Grain Bucket Loader |
| Rated Load Capacity | 5,000 kg (5 tons) – Handles heavy grain, corn, wheat, fertilizer loads |
| Operating Weight | Approx. 15,800 kg – Ensures excellent ground traction and stability |
| Engine Options | Weichai / Cummins – 6-cylinder turbocharged diesel engines |
| Rated Power Output | 162–178 kW (220–240 hp) – Delivers maximum power with low fuel usage |
| Grain Bucket Capacity | 3.5 – 5.0 m³ – Specifically designed for grain, feed, sawdust, and light bulk |
| Transmission Type | Power shift hydraulic transmission |
| Gear System | 4 Forward / 4 Reverse |
| Dumping Height | 3,150 – 3,500 mm – Designed for grain hopper and silo loading |
| Max Lifting Height | 4,200 mm – Efficient for elevated silo bins and grain trailers |

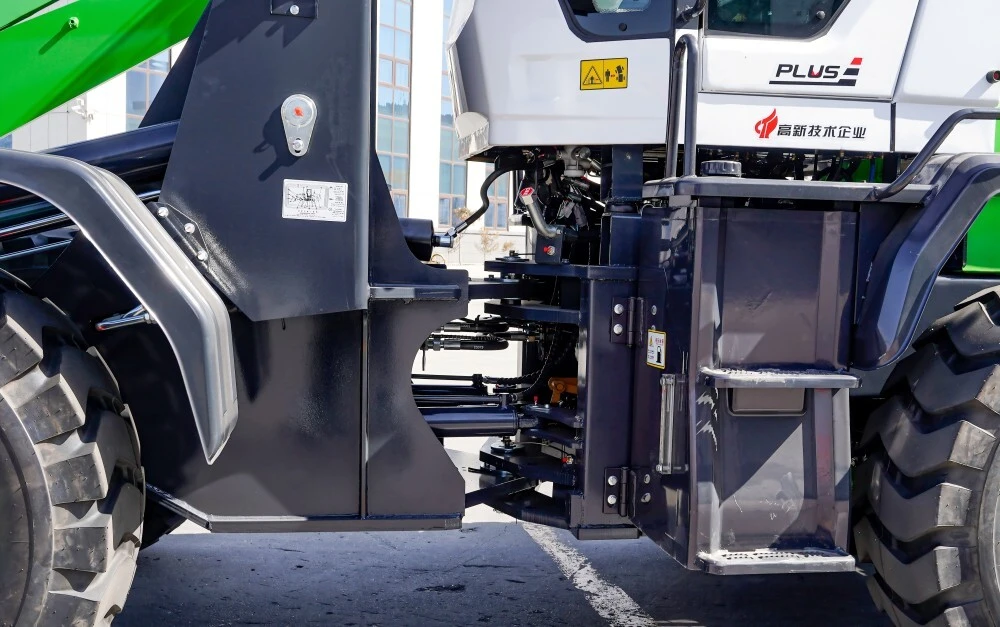

| Steering System | Full hydraulic articulated steering |
| Brake System | Air-over-oil disc brakes with emergency lock |

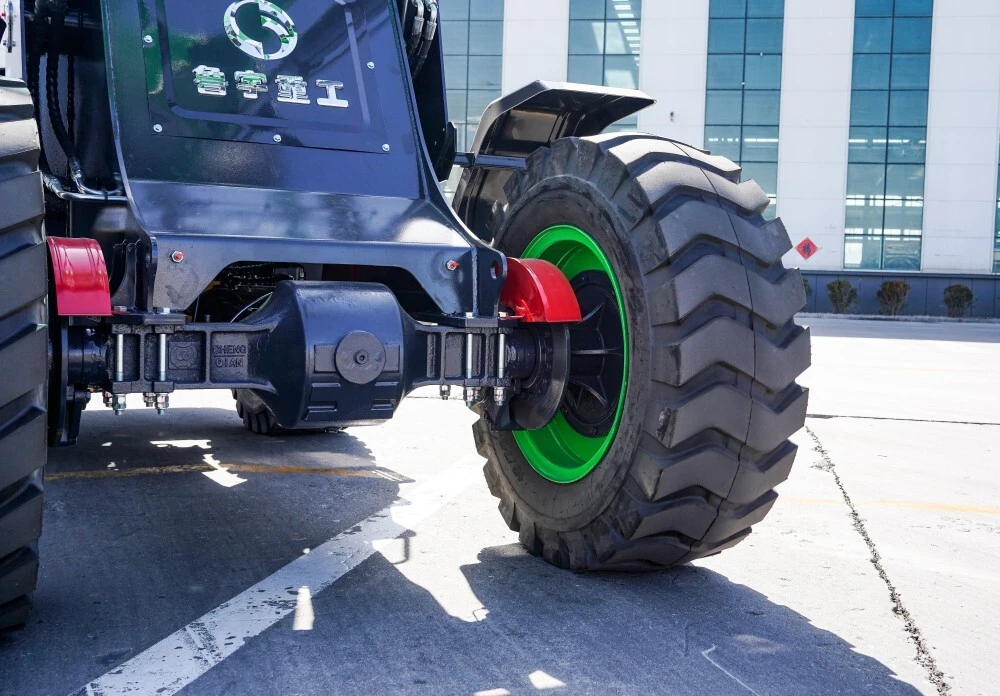

| Tire Size | 23.5/25 deep tread industrial tires |
| Cab Features | Enclosed A/C cabin, ROPS/FOPS certified, suspension seat |
| Optional Attachments | Standard bucket, log grapple, pallet fork, high-dump bucket |
Working Mechanism – How the LK952 Loader Operates

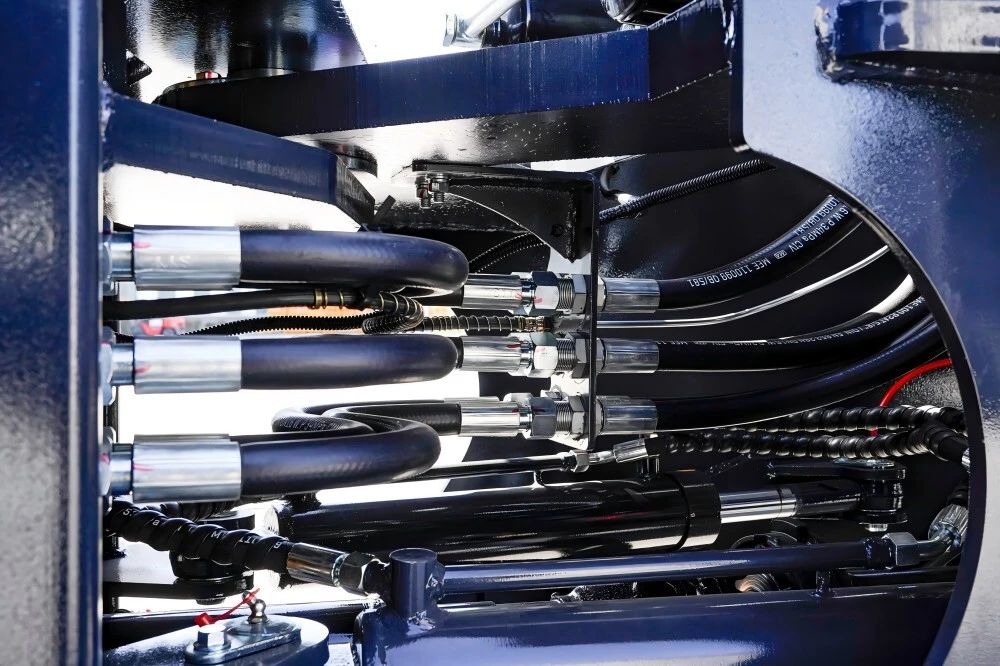

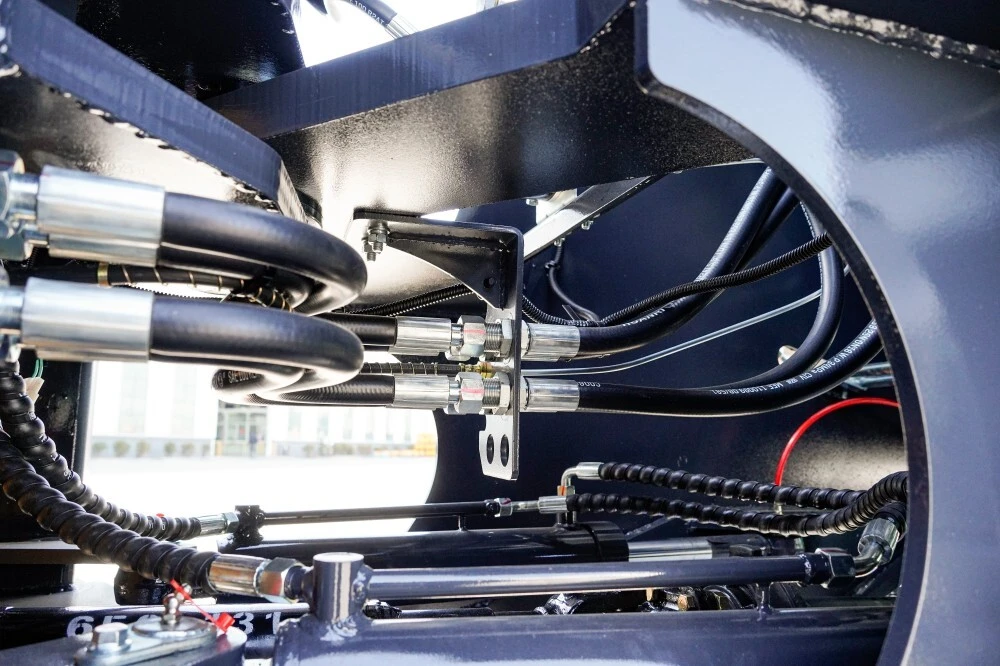

The LK952 Grain Loader functions using a powerful hydraulic transmission system mated with a high-torque diesel engine. It transfers engine output into seamless movement and precise hydraulic control through its power-shift transmission, enabling quick response in demanding conditions.
Equipped with an extra-large grain bucket, the LK952 significantly reduces loading cycles during bulk operations, especially for high-volume grain transport. Its full hydraulic articulated steering allows for tight turns in barns, storage sheds, and yard lanes.
Inside the cab, joystick-based controls give the operator complete command over lift, tilt, and dump actions. The wide-view windshield and sealed environment ensure safety and visibility when operating in grain elevators, silos, or large-scale farms.
Advantages of the LK952 Grain Bucket Loader
🔹 Massive Grain Bucket for Fewer Cycles
With a 5.0 m³ grain bucket, the LK952 loads more in each pass, improving efficiency in grain storage yards, fertilizer plants, and feed silos.
🔹 Powerful Engine, Lower Fuel Cost
The high-output Weichai or Cummins engine provides strong acceleration and lifting force with reduced fuel consumption—ideal for all-day operation in large farms.
🔹 Optimized for Loose, Lightweight Bulk Materials
Its grain-specific bucket design makes this loader highly effective for moving wheat, corn, rice husk, sawdust, compost, and similar materials.
🔹 Reliable for Heavy-Duty Agricultural Use

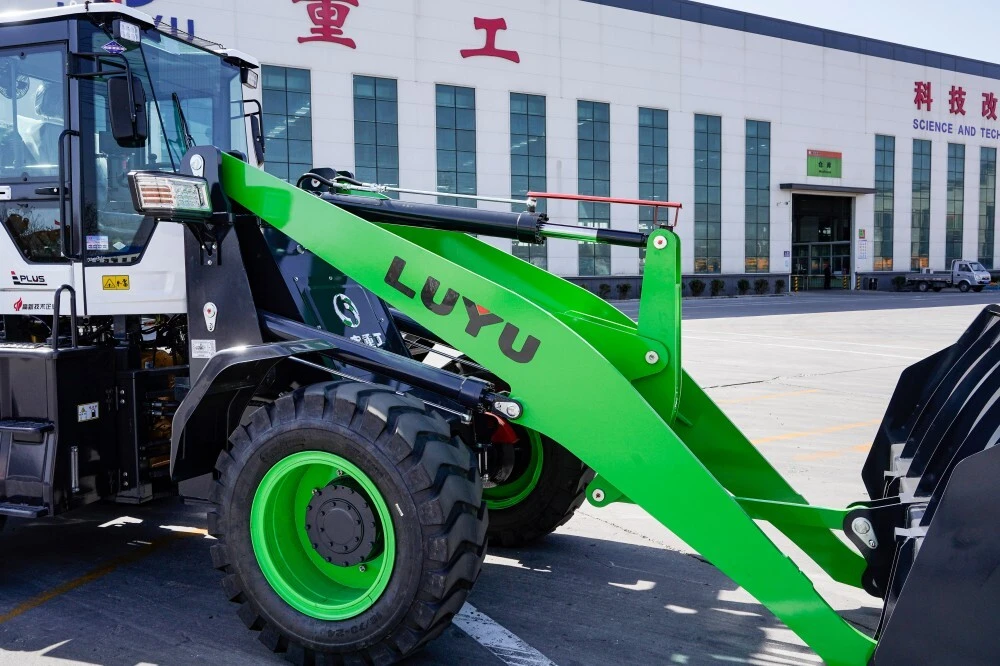

Built with a robust frame, heavy-duty axles, and long-reach arms, the LK952 handles extended lifting and high stacking with confidence.
🔹 Operator Safety and Comfort
The ROPS/FOPS-certified cabin offers full climate control, vibration-dampening suspension seating, and a panoramic field of view—keeping productivity high in all seasons.
🔹 Multiple Attachment Options
Easily switch from grain handling to log lifting, pallet movement, or snow clearing using the quick-attach coupling system—making it a versatile agricultural loader year-round.
