906 Compact Wheel Loader | U & Me Traders Pakistan
The 906 Compact Wheel Loader is purpose-built for operators who require efficient, precise performance in tight or congested work environments. This 1-ton compact loader combines agility, durability, and low operating cost—making it an excellent choice for small construction sites, farms, landscaping businesses, and municipal utilities.
Technical Specifications – 906 Loader
| Specification | Details |
|---|---|
| Model | 906 Compact Wheel Loader |
| Rated Load Capacity | 1,000 kg (1 ton) – Ideal for light-duty material handling |
| Operating Weight | Approx. 2,800–3,000 kg – Lightweight and easy to transport |
| Engine Options | Changchai 390 / Xinchai / Yunnei – Diesel, 3- or 4-cylinder |
| Rated Power Output | 25–36 kW (33–48 hp) – Fuel-efficient power for compact tasks |
| Bucket Capacity | 0.4 – 0.6 m³ – Suitable for feed, mulch, sand, compost, and light debris |
| Transmission | Hydraulic torque converter |
| Gears | 2 Forward / 2 Reverse |
| Max Dumping Height | 2,400 mm – Useful for low trucks, bins, and trailers |
| Max Lifting Height | 2,800 mm – For small-scale stacking and loading |
| Steering Type | Full hydraulic articulated steering |
| Brake System | Drum or air-over-oil brakes (model-dependent) |

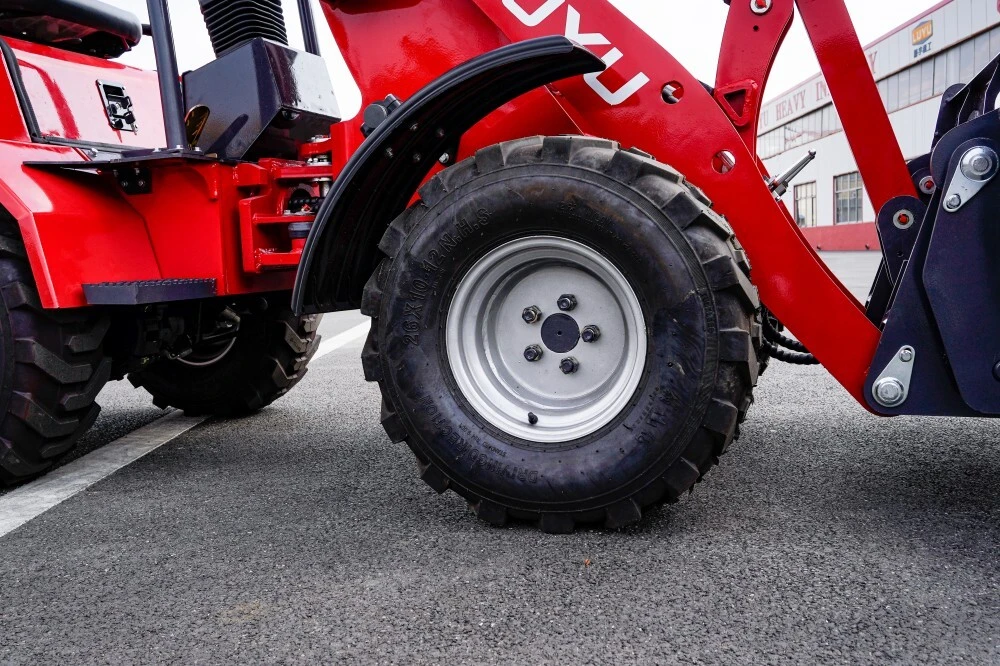

| Tire Size | 23×8.5-12 or 20.5/70-16 |
| Cab Design | Open canopy or enclosed cab (optional A/C) |
| Attachments Supported | Pallet forks, mini log grapple, auger, snow blade, bale spear |
Working Mechanism – How the 906 Compact Loader Operates
The 906 loader is powered by a small-displacement diesel engine connected to a hydraulic torque converter transmission, delivering reliable performance for light to moderate tasks. Its articulated steering gives it a tight turning radius—perfect for maneuvering through barns, alleyways, plant nurseries, and narrow job sites.
Joystick-style controls allow the operator to smoothly lift, tilt, and control attachments, while the hydraulic system ensures stable, responsive operation. Whether you're moving small loads of material, feeding livestock, or clearing snow from sidewalks, the 906 delivers reliable results with low fatigue.
This compact machine is especially useful for indoor barns, small yards, urban landscaping, and utility services where larger equipment would be overkill or impossible to use.
Advantages of the 906 Compact Wheel Loader
🔹 Compact Size for Constrained Work Zones
The 906 is designed for ultra-tight spaces, making it one of the most effective mini loaders for indoor, semi-indoor, or low-clearance environments.
🔹 Low Fuel Consumption, High Productivity
Its efficient diesel engine consumes less fuel per hour, delivering great output for cost-conscious operations like small farms and municipal crews.
🔹 Flexible Attachment Options
Quick-change coupling lets the operator switch between forks, buckets, grapples, and more—transforming the loader into a multi-purpose machine for all seasons.
🔹 User-Friendly Controls and Operation
Easy-to-use controls, simple gear shifting, and responsive hydraulics make the 906 ideal for both professional operators and first-time users.
🔹 Easy Transport and Storage
With a low overall height and weight, the 906 can be loaded onto small trucks or trailers and stored in garages, making it a true compact mobile solution.
🔹 Affordable Maintenance and High Uptime
Simplified maintenance access points and reliable mechanical components ensure reduced downtime and long service life for small-business users.
